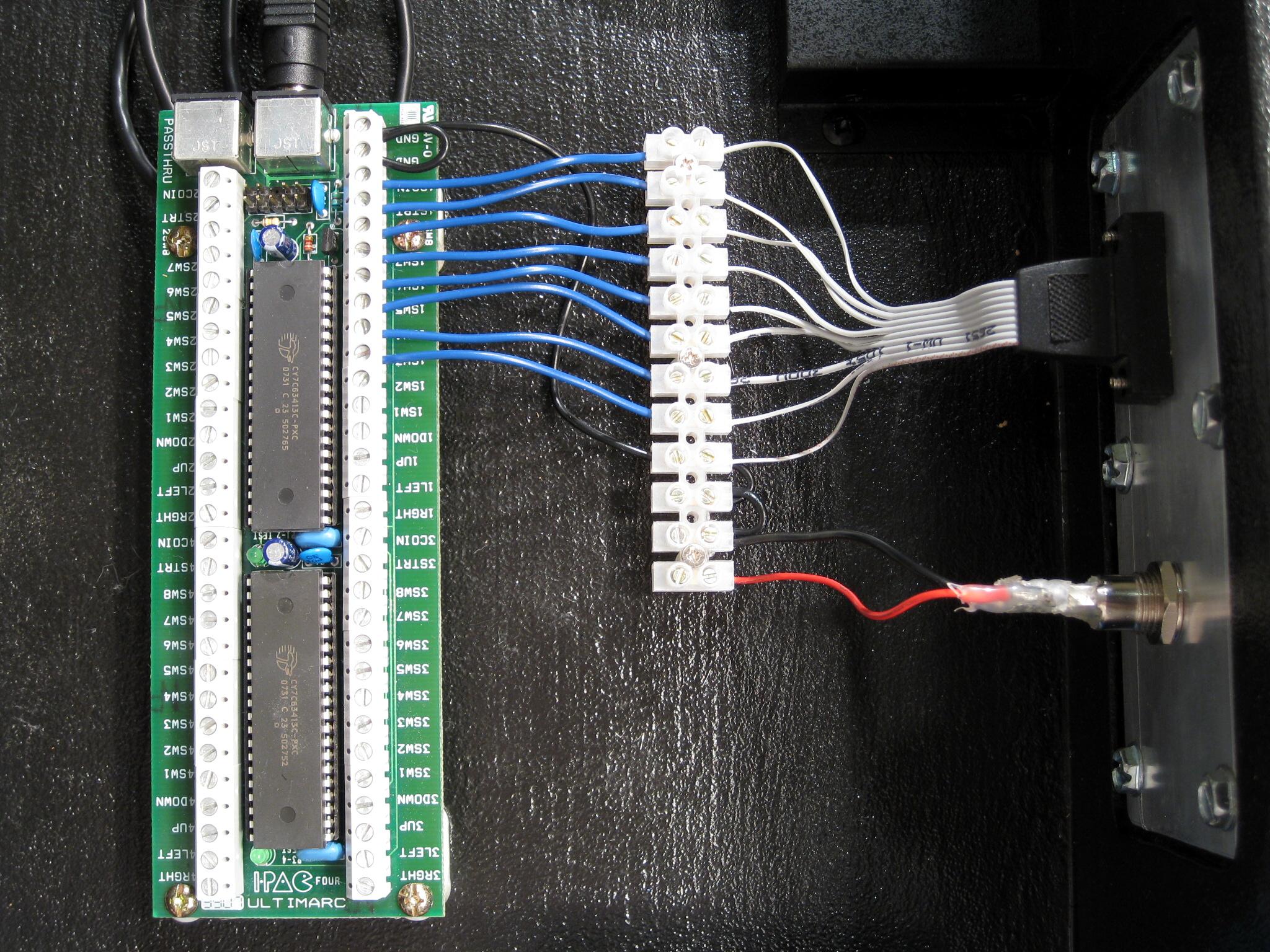

The wires from the DB-9 connector are first run to a European terminal block and then to the I-PAC4. The power and ground are also connected to the terminal block.
