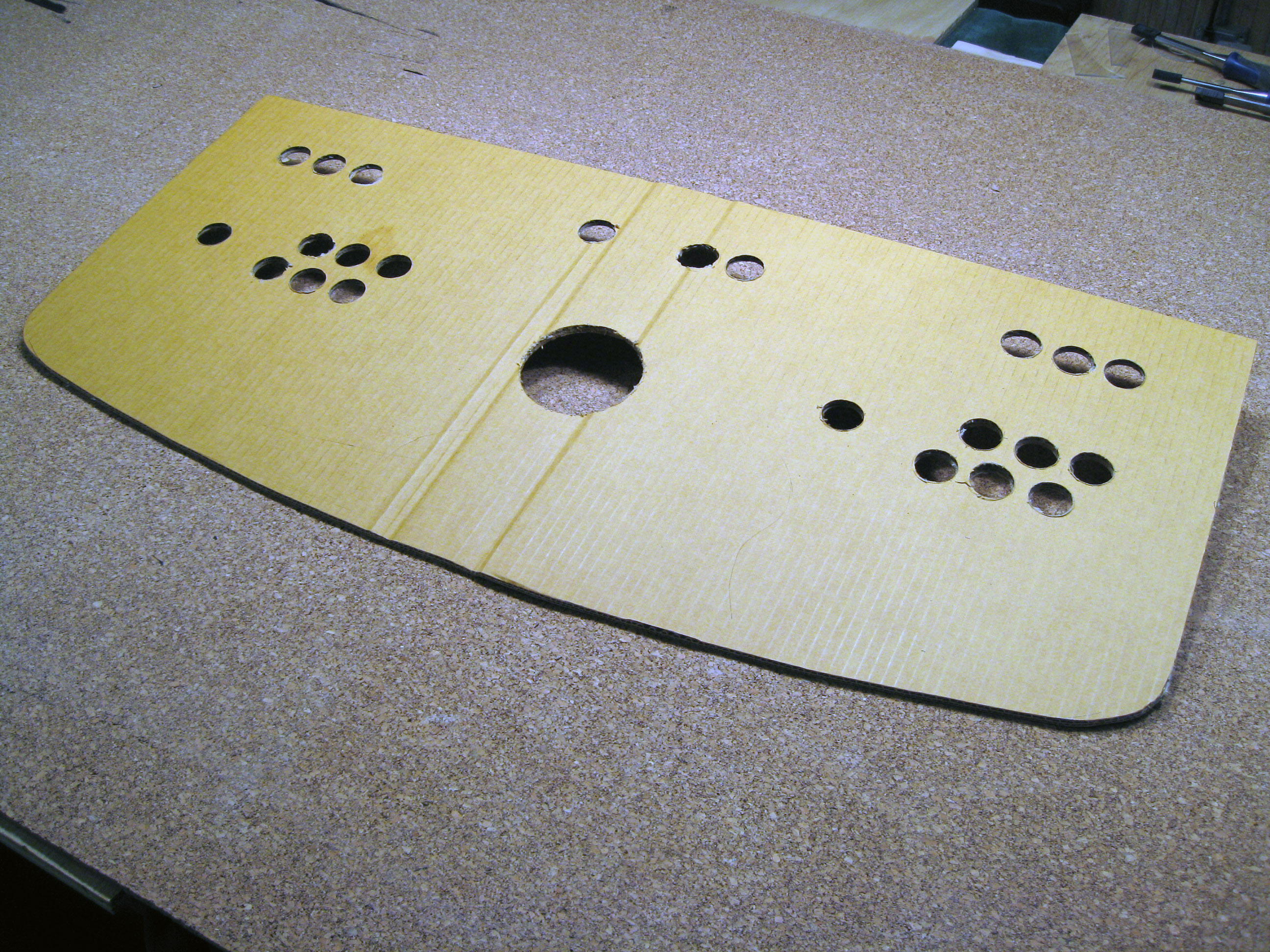

I wanted to make sure that everything worked ergonomically, so I made this scale mockup of the control panel. Good thing, too, because it turned out to be too big. I was able to cut down the overall dimensions by a few inches while keeping the same spacing for the controls.
