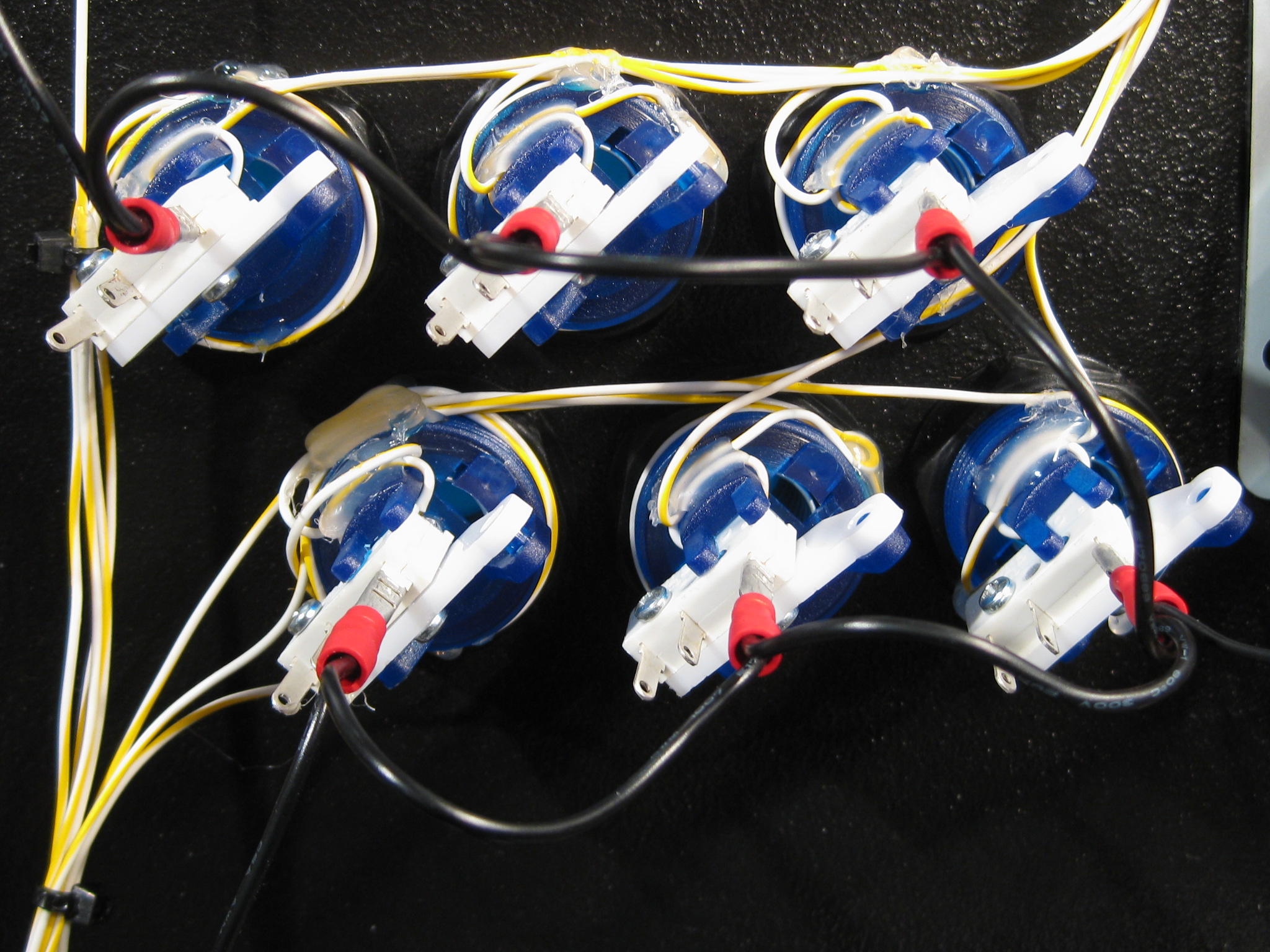

The next step was daisy chaining all of the ground wires to all of the switches on the pushbuttons. All of the ground wires will be connected to a single ground coming through the back of the control panel.
