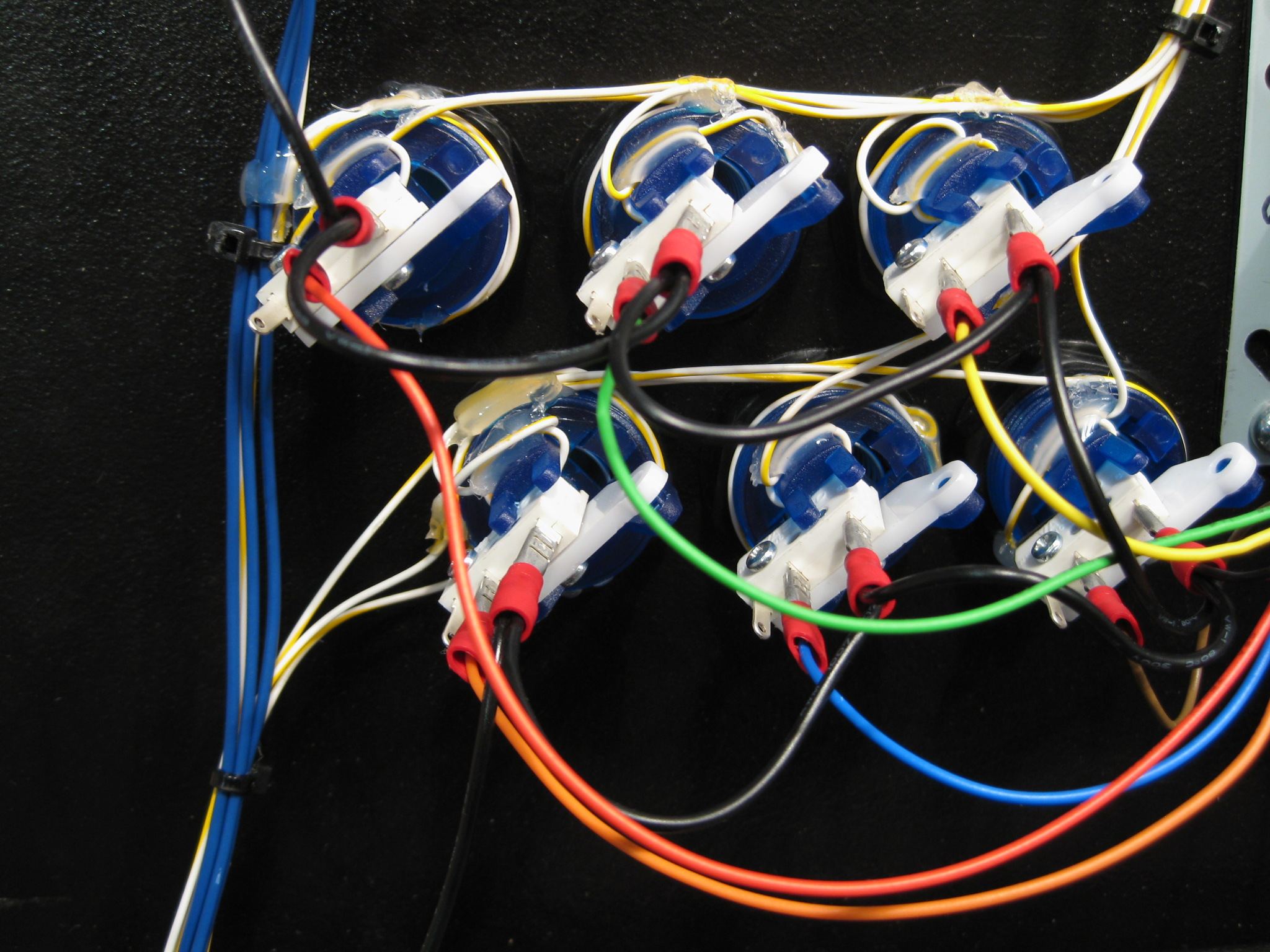

Next, each pushbutton gets a different color wire that runs to the joystick. The signals for the main player buttons will pass through the joysticks, not the I-PAC4, and be interpreted as gamepad button presses.
