Image 4 of 24

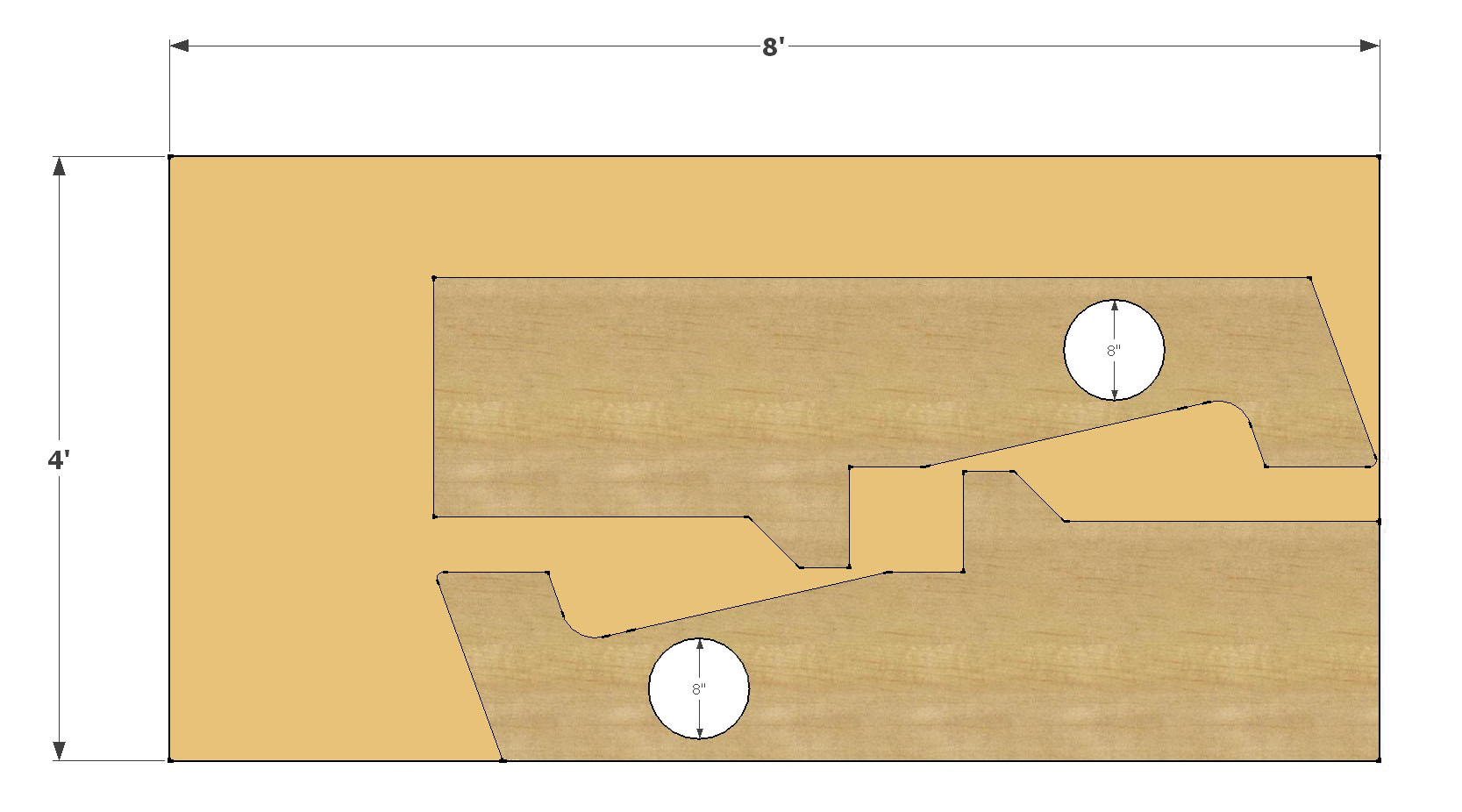

I used two sheets of maple veneer plywood for the machine. This is the first sheet of plywood, with the layout of the two side panels indicated. Although not shown, I was able to get a lot of the other pieces (like the speaker panel) out of the remaining material.


Bill's Wild West Arcade - SidePanelsLayout.jpg
(click image for full size)
