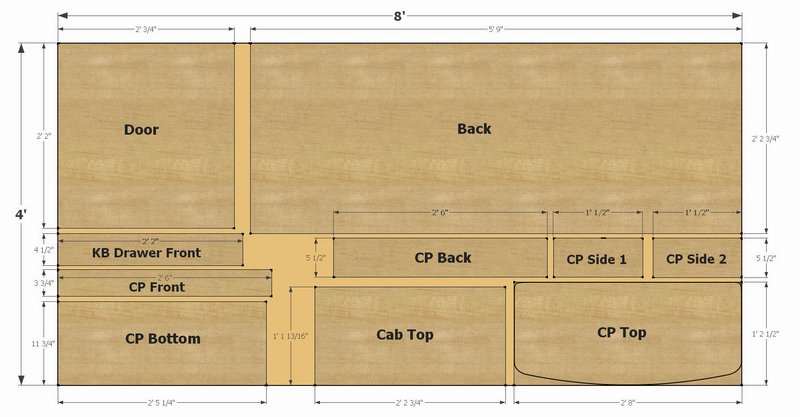

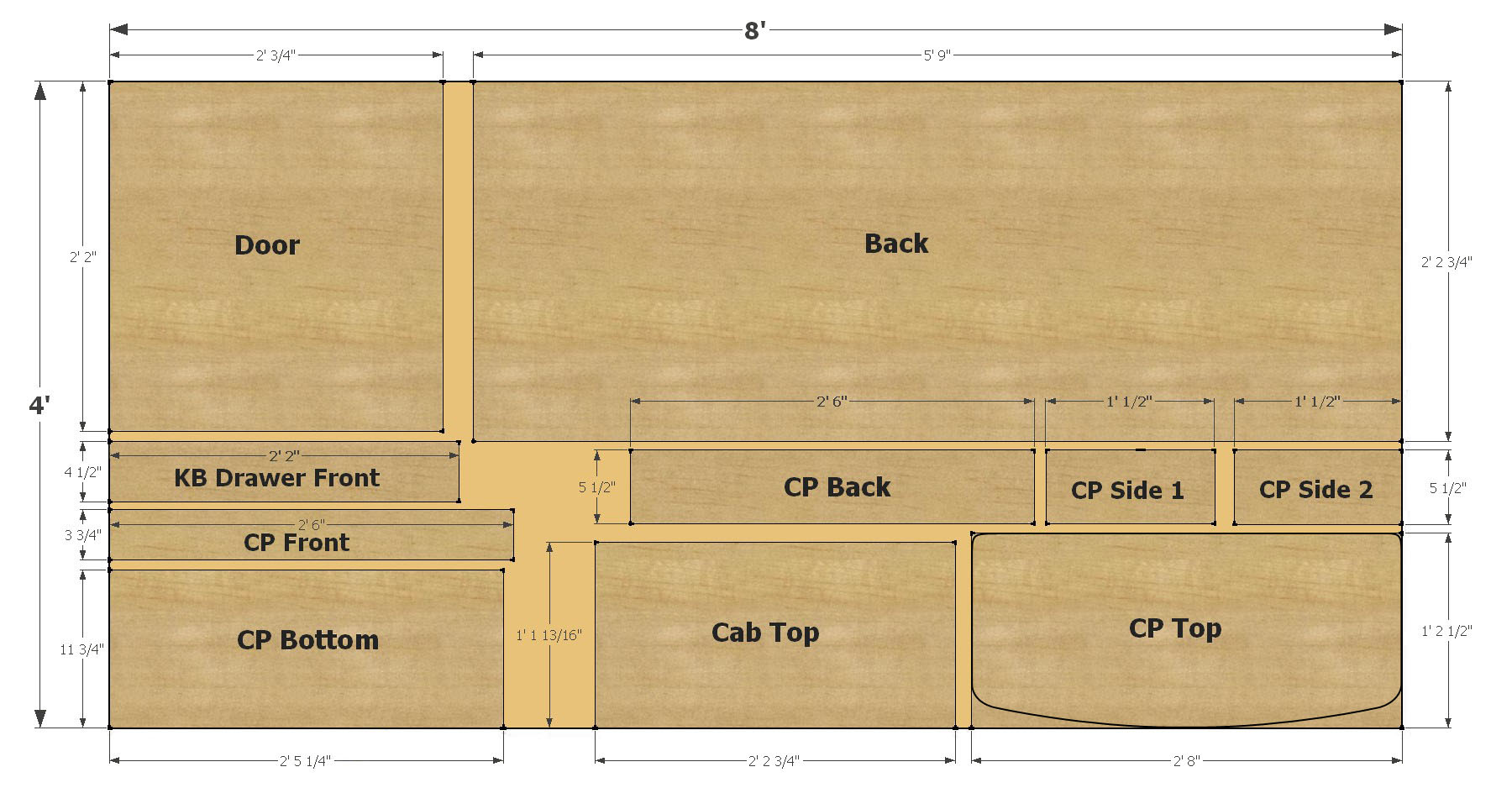

Here is roughly how I layed out the various individual pieces on the second sheet of plywood. This is actually a more efficient layout than the one I used because I had taught myself how to use Google SketchUp after I made the cuts. Even with my less efficient layout, I was able to get almost every piece I needed from the two sheets, but there are a couple of internal boards that I needed to make out of some scrap plywood, and the keyboard drawer ended up being made out of a piece of oak plywood.

Bill's Wild West Arcade - PiecesLayout.jpg
(click image for full size)
